FauxFlame V2® Synthesizer Module

$124.95 USD

Fauxflame Voltage *

Fauxflame Optimization *

Would you like your Fauxflame preset to be optimized for Dimmable L.E.D. Light Bulbs or Incandescent/Halogen.

By Pass Mode *

The Fauxflame By Pass grants the ability to run at full brightness if desired. To activate, once the fixture is running on the flicker effect, turn off the Fauxflame for 1-2 seconds, and turn back on. The light will ramp up to full brightness after 4 seconds. If a steady, but dimmer setting is desired, simply turn off the switch again while the light is ramping to full brightness to select that brightness. For further clarification, please watch our video on the new Generation of our Fauxflame.

SKU: F120-V2 Categories: ,

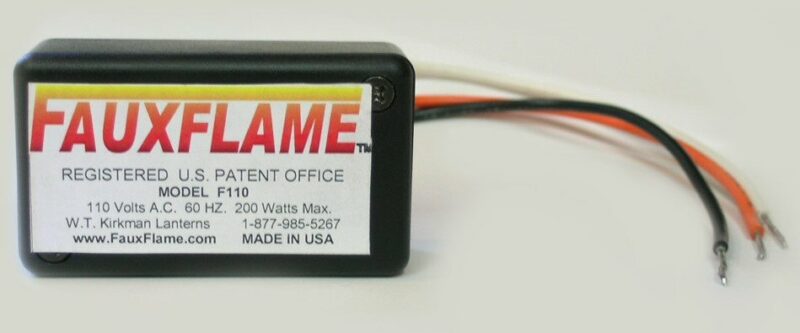

The flame effect you’ve unknowingly seen in amusement parks, haunted houses, restaurants, and in motion pictures, is now available direct to the general public. The W.T. Kirkman FAUXFLAME® module uses microchip technology to simulate the look of a real flame using any standard incandescent light bulb or dimmable LED bulb, while extending the bulb life dramatically. When used with frosted glass to hide the light bulb, only you will know that you aren’t burning kerosene. Dual brightness and flicker controls allow you to obtain the exact flame look you desire. The W.T. Kirkman FAUXFLAME module is perfect for use in electrified kerosene lanterns and oil or candle lamps. The optional By-Pass mode allows the user to bring the fixture to full brightness by simply interrupting the power for 1 second. After the lamp is turned off, it will resume the flicker effect the next time it is turned on. The W.T. Kirkman #F120 FAUXFLAME® module is as easy to wire as a conventional dimmer switch, however it is designed for professional installation only, and should only be installed by those familiar with electric circuitry and safety.

10% QUANTITY DISCOUNT FOR 12 OR MORE MODULES – Call In or Email to Order 10 or more.

#F110 Specifications:
■ 120 Volts, AC
■ 100 Watt Maximum Load
■ Use with Halogen/Incandescent and Dimmable L.E.D. Lamps only

■ Can be used to drive a 120V to 12 Volt Copper Wound Transformer (Not Digital) to create 12V A.C. for Garden Lighting

Module Dimensions:
■ 2 3/8″ x 1 3/8″ x 13/16″
■ Made in U.S.A.

Satisfaction Strictly Guaranteed!

This product is made to order in our Southern California Facility, some production time will be required. Most custom orders ship within 2 to 4 weeks. Please call us toll free at 1-877-985-5267 (in the U.S.A.,) if you have any questions, or to discuss options.

Additional information

Weight .5 lbs
Dimensions 2.5 × 1.25 × 1 in
