Approved Fuels for Tubular Lanterns

For Indoor and Outdoor Application

-Lamplight Farms® Clear Medallion Brand Lamp Oil

-W.M. Barr & Co. Klean-Heat® Kerosene Substitute (Sold at Home Depot

-Crown® Brand Clear Lamp Oil

-Genuine Aladdin® Brand Lamp Oil

-Florasense® Brand Lamp Oil (Sold at Walmart)



For Outdoor Application Only

-Non-Dyed (Clear) Kerosene

-Coleman® Brand Kerosene Fuel

-Crown® 1-K Fuel Grade Kerosene

-Crown® Citronella Torch and Lamp Fuel

Cut 50:50 with kerosene to extend wick life.

-Tiki® Brand Citronella Torch Fuel

Cut 50:50 with kerosene to extend wick life.

Trouble Free Operation Tips:

1. Inspect the globe for cracks or chips.

2. Clean the lantern, check for damage.

3. Clean the burner for even burning. Periodicallysoak the burner in white vinegar if necessary.

4. Brush char off wick and clean charcoal out of
holes in burner around wick holder

5. If lantern is out and there is still fuel in it - check
wick length, replace if needed.

6. Always use 125 to 150 degree kerosene, or
regular lamp oil (Not Paraffin,) for best results.

7. Never use gasoline, paint thinner, mineral spirits,
Coleman fuel, or any other explosive oil with a wick.

8. Avoid using colored or tinted oils as they will
gum the wick and inhibit the capillary action.

7. Paraffin oil should not be used with 7/8" or larger
wick due to the difference in viscosity. (Paraffin
burns with a 50% reduction in light output.)

W.T.Kirkman No. 1 Little Champ

The W.T. Kirkman No. 1 Little Champ is the 3/4 version of the No. 2 Champion, and the smallest tubular lantern in our Premium Grade Signature Series. Features a full weight pressed globe bearing our trademark, and an improved #201 Wing-Lock Burner with brass wick tube for unparalleled operation. The bright galvanized finish is reminiscent of the unpainted Junior lanterns made from 1902 to 1943. Especially appropriate for applications that demand both historic accuracy as well as durability and performance.

SPECIFICATIONS
•12" Height (Bail Up Height 16 1/4")
•5/8" Wick •Average 9 Candle Power
•9 oz. Fount Capacity •12 Hour Burning Time
•Approx. Thermal Output: 1100 BTU/Hour
•Full Weight Pressed WTK #857 Globe

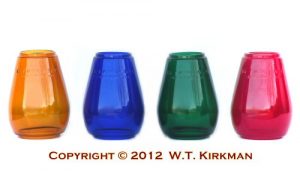

•Optional Solid Color Amber, Blue, Green or Red Globes
•Packed One Dozen per Case (Also Sold Individually)
•Includes Handy Funnel for oiling
•Wicked and ready to add oil
•Black or Bright Galvanized Finish •Clear or Colored Globe
•Imported

W.T.Kirkman No. 2 Champion

Our Most Popular Lantern Model!

The W.T. Kirkman No. 2 Champion is the largest lantern in our
Premium Grade Series, and the most popular. This versatile and
rugged model has exclusive features, including: An improved
wing-lock burner with brass wick tube; Durable all galvanized
construction; and a full-weight pressed "Loc-Nob" globe bearing
our trademark.  The Bright Galvanized
Steel finish is reminiscent of the unpainted lanterns produced in
the late 1800's up to 1943, and is especially appropriate for applications that demand both historic accuracy as well as durability
and performance.

“If you plan to only own one tubular lantern, this is it!”

SPECIFICATIONS:
•15" Height (Bail Up Height 20 1/2")
•7/8" Wick, Average 12 -14 Candle Power
•31 oz. Fount Capacity, 27 Hour Burning Time
•Approx. Thermal Output: 1400 BTU/Hour
•Full Weight Pressed WTK #852 Globe
•Clear Globe Standard

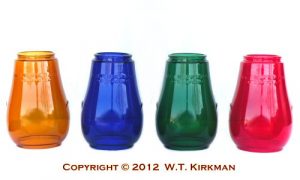

•Optional Solid Color Amber, Blue, Green or Red Globes
•One Dozen per Case (Also Sold Individually)
•Includes Handy Funnel for Oiling
•Wicked and Ready to Add Oil
•No. 2 Available in Black or Bright Galvanized Finish
•Imported

The W.T. Kirkman No. 350 Little Giant Lantern is our homage
to the Dietz model of the same name first introduced in 1926,
and the Embury #350 Little Supreme & Little Air Pilot lanterns,
all of which used the Little Wizard size globes. The #350 Little
Giant features an original style globe guard, our exclusive WTK
#201 Wing-Lock Burner, and a full weight pressed "Loc-Nob"
globe bearing our trademark. The durable Bright Galvanized
Steel version is highly rust resistant and reminiscent of the lanterns produced before 1943.
SPECIFICATIONS
•12" Height (Bail Up Height 16 1/4")
•5/8" Wick •Average 9 Candle Power
•31 oz. Fount Capacity •40 Hour Burning Time
•Approx. Thermal Output: 1100 BTU/Hour
•Full Weight Pressed WTK #851 Globe
•Optional Solid Color Amber, Blue, Green or Red Globes
•Packed One Dozen per Case (Also Sold Individually)
•Includes Handy Funnel for oiling
•Wicked and ready to add oil
•Black, Red, or Bright Galvanized Finish •Clear or Color Globe
•Imported

W.T.Kirkman Premium Grade Accessories

W.T.Kirkman Heritage Series

  • W.T.Kirkman No.0 Tubular Brass Fire Dep’t Lantern

     $444.95 USD

    The W.T. Kirkman No. 0 “FIRE DEP’T” Lantern is a stunning showpiece, and can be
    used to crown restored 1890 to 1910 fire apparatus, or it is the ideal fireman retirement
    gift. Hand made in the U.S.A. of polished solid brass. Options include engraved globe,
    tank tag, nickel plating, bulls eye lens, colored globe, etc.

    SPECIFICATIONS:
    •16″ Height
    •6” Bottom Diameter
    •Average 5 Candle Power
    •5/8″ Wick
    •8 oz. Fount Capacity
    •12 Hour Burning Time
    •Tank Embossed “FIRE DEP’T”
    •Made in U.S.A.

  • W.T.Kirkman No.0 Tubular Brass Lantern with Wall Reflector

     $394.95 USD

    Our solid brass No. O Tubular lantern with
    the addition of a corrugated wall reflector.
    Patterned after the wagon dash lanterns of
    years ago.

    SPECIFICATIONS:
    •15 1/2″ Height
    •Average 5 Candle Power
    •5/8″ Wick
    •14 oz. Fount Capacity
    •23 Hour Burning Time
    •Made in U.S.A.

  • W.T.Kirkman Lanterns #0 Tubular Nickel Plated Lantern shown with Red, Amber, Green, and Blue Globes

    W.T. Kirkman No.0 Tubular Brass Lantern

     $339.95 USD

    W.T. Kirkman No. 0 “Tubular”
    Solid Brass Hot Blast Lantern
    The W.T. Kirkman No. 0 “Tubular” Brass Lantern is the first “tubular” hand lantern made in the U.S.A. in over 40 years. Our goal was to produce a lantern true to the earlier designs of the 1870’s to ’90’s, but to also incorporate some of the later improvements, such as the leak-proof double crimp tank and wing-lock burner. The result of our efforts is the finest lantern made today. It is sure to become a collector’s piece, as production is very limited and each one is numbered and registered to it’s owner.

    SPECIFICATIONS:
    •15 1/2″ Height
    •5 3/4” Bottom Diameter
    •Average 5 Candle Power
    •5/8″ Wick
    •14 oz. Fount Capacity
    •23 Hour Burning Time
    •Made in U.S.A.

  • W.T.Kirkman No.0 Tubular Brass Fire Dep’t Lantern

     $444.95 USD

    The W.T. Kirkman No. 0 “FIRE DEP’T” Lantern is a stunning showpiece, and can be
    used to crown restored 1890 to 1910 fire apparatus, or it is the ideal fireman retirement
    gift. Hand made in the U.S.A. of polished solid brass. Options include engraved globe,
    tank tag, nickel plating, bulls eye lens, colored globe, etc.

    SPECIFICATIONS:
    •16″ Height
    •6” Bottom Diameter
    •Average 5 Candle Power
    •5/8″ Wick
    •8 oz. Fount Capacity
    •12 Hour Burning Time
    •Tank Embossed “FIRE DEP’T”
    •Made in U.S.A.

  • W.T.Kirkman No.0 Tubular Brass Lantern with Wall Reflector

     $394.95 USD

    Our solid brass No. O Tubular lantern with
    the addition of a corrugated wall reflector.
    Patterned after the wagon dash lanterns of
    years ago.

    SPECIFICATIONS:
    •15 1/2″ Height
    •Average 5 Candle Power
    •5/8″ Wick
    •14 oz. Fount Capacity
    •23 Hour Burning Time
    •Made in U.S.A.

  • W.T.Kirkman Lanterns #0 Tubular Nickel Plated Lantern shown with Red, Amber, Green, and Blue Globes

    W.T. Kirkman No.0 Tubular Brass Lantern

     $339.95 USD

    W.T. Kirkman No. 0 “Tubular”
    Solid Brass Hot Blast Lantern
    The W.T. Kirkman No. 0 “Tubular” Brass Lantern is the first “tubular” hand lantern made in the U.S.A. in over 40 years. Our goal was to produce a lantern true to the earlier designs of the 1870’s to ’90’s, but to also incorporate some of the later improvements, such as the leak-proof double crimp tank and wing-lock burner. The result of our efforts is the finest lantern made today. It is sure to become a collector’s piece, as production is very limited and each one is numbered and registered to it’s owner.

    SPECIFICATIONS:
    •15 1/2″ Height
    •5 3/4” Bottom Diameter
    •Average 5 Candle Power
    •5/8″ Wick
    •14 oz. Fount Capacity
    •23 Hour Burning Time
    •Made in U.S.A.

W.T.Kirkman Street, Platform, & Station Lamps

  • W.T.Kirkman Lanterns Climax Square Station Lamp Black with Polished Brass

    W.T. Kirkman No. 2 Climax Railroad Station Lamp

     $529.95 USD

    Dietz first started making square station
    lamps in 1840. Our Climax model is
    authentic to the pattern from the 1890’s.

    Specifications:
    •18″ High, 10 1/2″ Wide, 8 1/2″ Deep
    •#2 Queen Anne Burner, 7/8″ Wick
    •Average 10 Candle Power
    •18 oz. Fount Capacity
    15 Hour Burning Time
    •#860 Pearl Top Chimney
    •Made in U.S.A.

  • W.T. Kirkman No. 300 Frontier Post Lamp

     $469.95 USD

    Our No. 300 Frontier Lamps are patterned after the kerosene street lamps that were
    common in the United States from the late 1800’s into the 1920’s. These were used at
    railroad stations and platforms, army & cavalry bases, park grounds, courthouses, and
    library entrances, to name just a few.

    Specifications:
    •12-16 Candle Power Output
    •Casts No Shadow
    •20+ Hour Burn Time per Tank
    •Regulated & Filled From the Outside
    •Reflector Diameter: 15″
    •Post Lamp Height: 26″
    •Hanging Lamp Height: 23″ (Less bail)
    •Made in U.S.A.

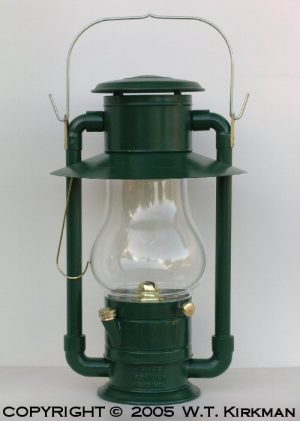

  • W.T.Kirkman Lanterns "Frontier" #300 Hanging Street Lamp with Solid Copper Tank and Reflector

    W.T. Kirkman No. 300 Frontier Hanging Oil Lamp

     $629.95 USD

    Our No. 300 Frontier Hanging Lamp the Hanging version of the Post Street Lamp.

    Specifications:
    •12-16 Candle Power Output
    •Casts No Shadow
    •20+ Hour Burn Time per Tank
    •Regulated & Filled From the Outside
    •Reflector Diameter: 15″
    •Post Lamp Height: 26″
    •Hanging Lamp Height: 23″ (Less bail)
    •Made in U.S.A.

W.T.Kirkman Railroad Car Lamps & Accessories

  • W.T. Kirkman No. 2528 Bunk Car Wall Lamp

     $179.95 USD

    •Height: 13″ •Width: 7″
    •#2 Queen Anne Oil Burner
    •Average 10 Candle Power
    •33 oz. Fount Capacity
    •28 Hour Burning Time
    •Made in U.S.A.
    •Burner & Chimney Imported

  • W.T. Kirkman No. 2529 Large Bunk Car Wall Lamp

     $199.95 USD

    •Height: 15″ •Width: 8″
    •#2 Queen Anne Oil Burner
    •Average 10 Candle Power
    •48 oz. Fount Capacity
    •40 Hour Burning Time
    •Made in U.S.A.
    •Burner & Chimney Imported

  • W.T. Kirkman No. 2525 Caboose Wall Lamp with Bracket

     $199.95 USD

    •Solid Brass or Steel Fount, Steel Fount Holder
    •Height: 13″ •Width: 8″
    •#2 Queen Anne Oil Burner
    •Average 10 Candle Power
    •33 oz. Fount Capacity
    •28 Hour Burning Time
    •Made in U.S.A.
    •Burner & Chimney Imported
